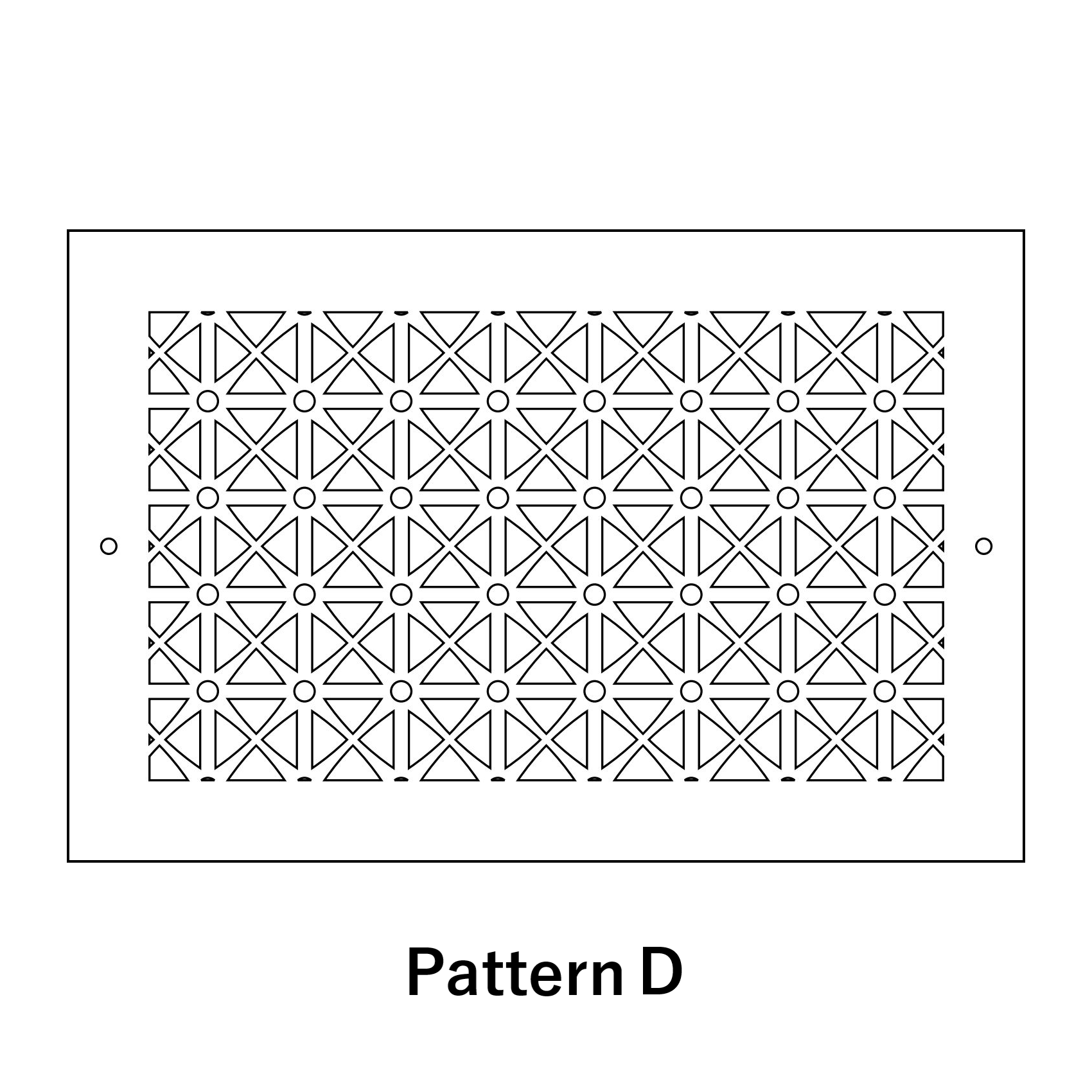

Decorative Wall Return Air Vent - Pattern D

Pattern Cut decorative wall return air vents accentuate any room. They can be painted to match your walls or stained to match your trim. These decorative wall return air vents come in 26 different designs for you to choose from. They also come in 56 sizes, if you don't see the size you need listed in the drop down menu, call us at 800-504-5989 to get a quote. These wooden grilles are measured by the size of the duct opening in your wall. Measure your return air duct opening width x height. For example, if your duct opening is 10" wide x 6" high you would order a 10 x 6 return air grille. The actual faceplate of the grille will then be 1 3/4" larger (in this example the faceplate will be 11 3/4" x 7 3/4"). These grilles are constructed from a 1/4" thick Baltic Birch ply. For the face of the return air vent, you have the option of choosing between Maple, Oak, or a Cherry Veneer. If you will be painting the grille, the manufacturer recommends you select the maple veneer. They are shipped to you sanded and ready to be finished however you'd like. These decorative wall return air vents can be transformed into decorative wall or ceiling registers by purchasing the Adjustable Damper that is available in 21 of the Pattern Cut sizes.

The wood Pattern Cut Grilles have a lead time of 3-5 weeks to ship because they are cut to order. They are also a special order, non-returnable item and cannot be canceled once payment is received.

Choose From 3 Different Veneers:
(Click for larger image)
Choose Your Veneer

Tips for Staining Your Decorative Wall Return Air Vent

- Fill a large pan with the stain of your choice.
- Submerge your grille into the pan.
- Allow the grille to dry in an upright position for 24 hours.
- Spray the grille with a lacquer sanding sealer, applying 2 or 3 coats.
- Apply 1 coat to the back to ensure the grille is completely sealed.
- Sand the grille softly. Be extra careful around the edges.
- Spray the grille with a clear lacquer, applying 2 to 3 coats.
- Allow to dry completely (3 days or so) before installing in your home.
- Do not finish in or expose wood grilles to direct sunlight.

Tips for Painting Your Decorative Wall Return Air Vent

- Select a good water, oil, shellac, or lacquer based primer.
- Thin the primer before working it onto the surface of the grille with a soft brush.
- Take care not to let drips build up in the corners of the grille.
- Using a spray, roller, or brush apply 2 coats of paint.
- Allow to dry completely before installing in your home.

These decorative wall return air vents are made to be used in the wall and ceiling. They are not strong enough to be used in the floor.
