Pattern Cut Design M Discounts Apply !
Pattern Cut Design M
  (Enlarge)
Free Ground Shipping for Orders Over $100*

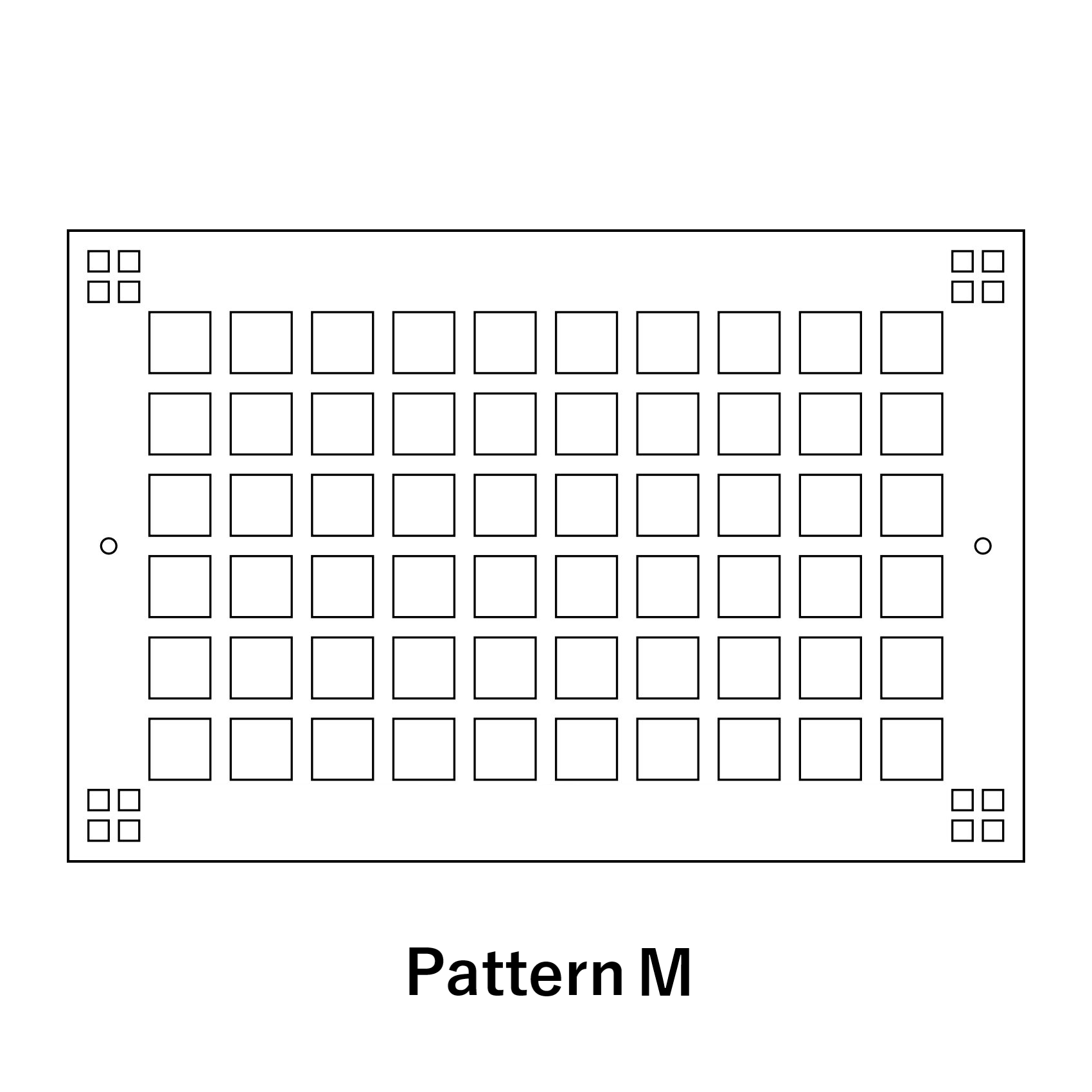

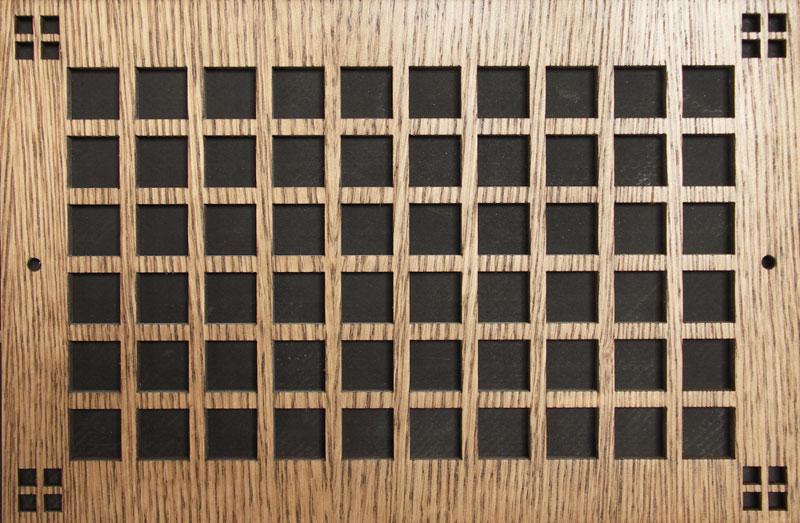

Pattern Cut Wood Air Return Decorative Wall Grille - Pattern M

Pattern Cut wood air return decorative wall grilles can be cut to any size or shape you need. We offer 56 sizes but if you don't see your size listed, call us at 800-504-5989 for a quote. You can stain or paint these wood air return decorative wall grille to match your walls or trim. They are cut from Baltic Birch hardwood ply with Oak, Maple, or Cherry furniture grade face veneer. If you plan on painting the grille, the manufacturer recommends you select the maple veneer. You also have the option of purchasing the Adjustable Damper which comes in 21 of the Pattern Cut size. This damper allows you to adjust the airflow of the grille with a screw driver.

These wood air return decorative wall grilles are measured by the size of the duct opening. The duct is measured in inches, width by height. For exampe, if your duct opening is 24" wide by 12" tall you would need the 24 x 12 wall grille. The faceplate of the grille will be 1 3/4" larger than the duct opening. In the previous example, the faceplate would measure 25 3/4" wide by 13 3/4" tall. The approximate thickness of the faceplate is 1/4".

Choose From 3 Different Veneers:
(Click for larger image)
Choose Your Veneer

How to Stain Your Wood Air Return Decorative Wall Grille

- Fill a large pan with the stain of your choice and submerge the grille.
- Wipe off any excess stain and leave the grille to dry in an upright position for 24 hours.
- Spray the grille with 2 - 3 coat of lacquer sanding sealer while it is laying flat.
- Spray one coat on the back to seal the grille.
- Gently sand the grille.
- Again, lay the grille flat and apply 2 - 3 coats of clear lacquer.
- Allow to cure for 3 days.

How to Paint Your Wood Air Return Decorative Wall Grille

- Thin your primer and apply 2 thin coats to the grille with a soft brush.
- The best way to apply the paint is with a spray but a roller or brush will also work.
- Apply 2 finish coats of paint
- Allow the paint to dry completely before installing.

These wood air return decorative wall grilles cannot be used in the floor.

These wood grilles are made to order and may take 7-15 business days to ship. They are considered special order, non-returnable and cannot be canceled once payment is received.

:
:
:
