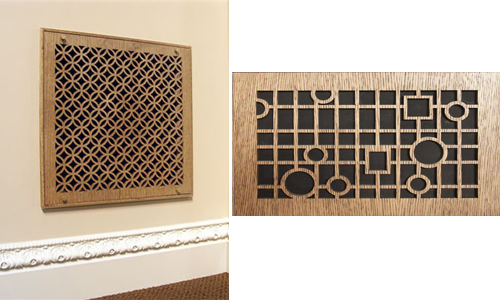

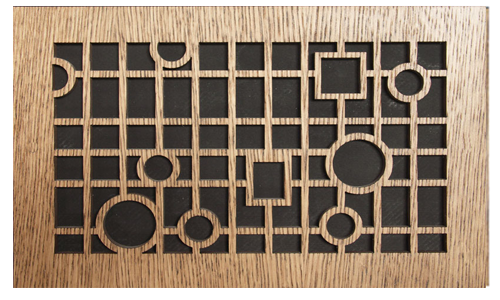

Pattern Cut Wood Return Air Wall Grille - Pattern S
Replace your old, rusted out metal filter grille with the beautiful Pattern Cut Filter Grilles! The wood on these grilles is made from 100% laminated birch hardwood with a veneered faceplate. It is your choice between three different veneers; oak, maple or cherry. If you are planning on painting the grille the manufacturer does recommend you go with the maple veneer. These come sanded ready for you to finish however you'd like. Not only do we have 56 different sizes but the manufacturer is also able to make custom sizes! Just reach out via email or by phone using 1-800-504-5989 for a quote.
Each Pattern Cut Filter Grille includes a dark blue 1" frame and removable filter door that is held in place with brass thumb screws.
These beautiful wood filter grilles are made to order, they should ship in 3-5 weeks. Pattern Cut Filter Grilles are special order, non-returnable and cannot be canceled once payment is received.
How to Order Your Decorative Air Return Wall Grille
- Measure the duct opening in your wall or ceiling (w" x h").
Ex: a 12" wide x 6" high duct opening will need a 12 x 6 wall grille.
Hint: The outer measurement of the grilles will be 2" larger than the duct size. In the previous example, the faceplate would measure 14" x 8"
How to Paint Your Wood Return Air Wall Grille
- Thin your primer. Be sure to choose a good oil, water, lacquer, or shellac based primer.
- With a soft brush, work the primer over the surface of the grille taking care not to let drips build up in the edges.
- Apply 2 coats of paint.
- Allow to dry completely before installing.
How to Stain Your Wood Return Air Wall Grille
- Fill a large pan with stain.
- Submerge the entire grille.
- Wipe of excess stain and allow the grille to dry in an upright position for 24 hours.
- Lay the grille flat and spray 2 - 3 coats of lacquer sanding sealer.
- Gently sand the grille with a piece of 220 grit sandpaper.
- Clean off the residue.
- Lay the grille flat and spray 2 - 3 coats of clear lacquer.
- Allow the grille to cure for at least 3 days before installing.
These wall filter grilles are intended for use in the wall and ceiling only.
