Product ID Pattern-Cut-Design-W

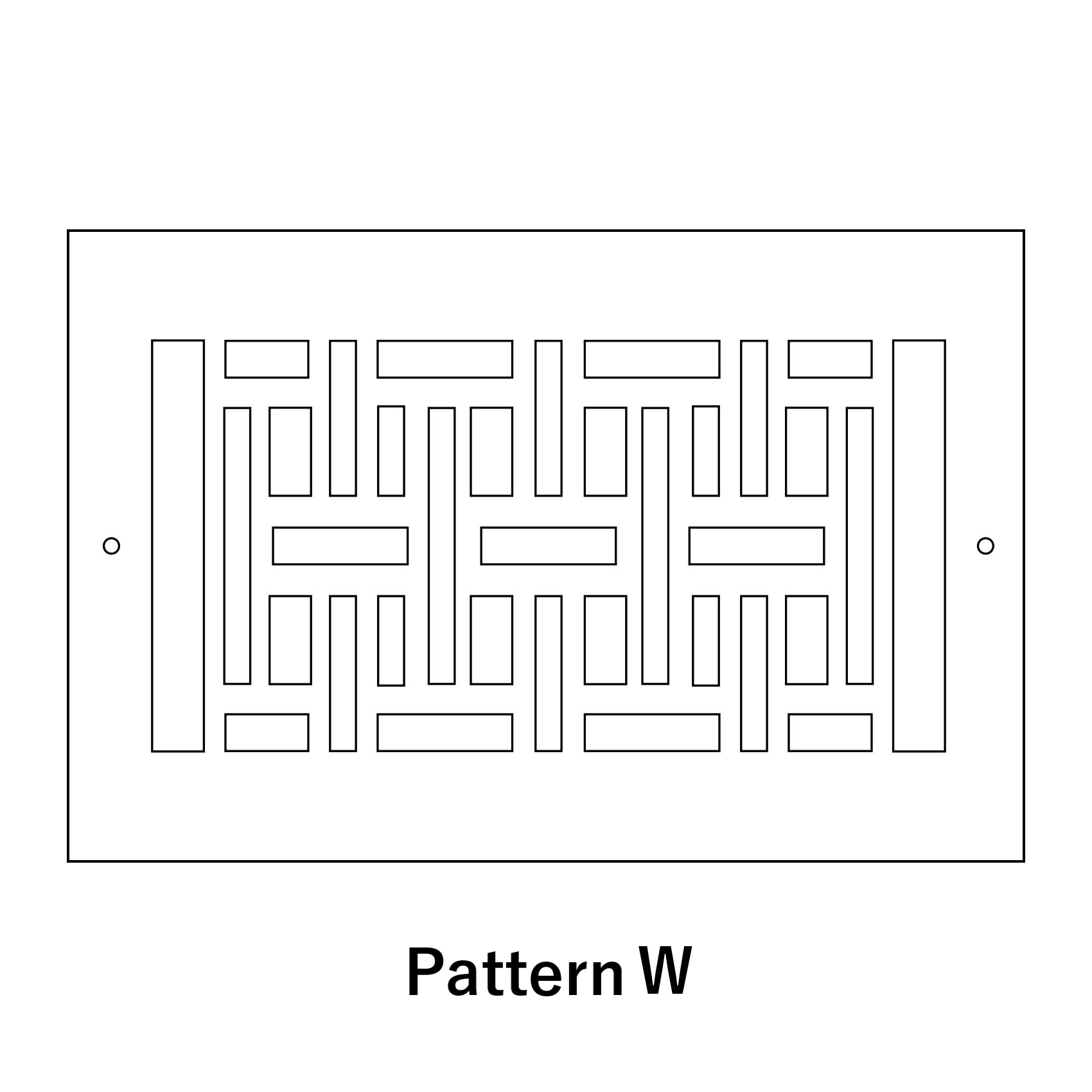

Pattern Cut Design W

Discounts Apply !
Free Ground Shipping for Orders Over $100*

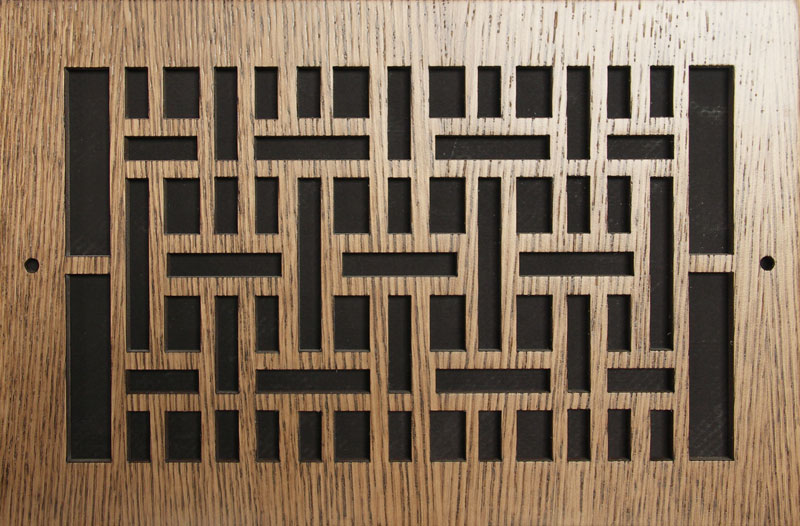

Pattern Cut Return Air Wall Grille - Pattern W

Pattern Cut return air wall grilles are a beautiful addition to any room. These return air wall grilles come in a variety of designs, sizes, and woods. You can choose between 26 different intricate designs, each grille cut individually with a laser which vaporizes materials at the speed of light. We offer 56 sizes on our website. If you do not see the size or shape you need listed, call us at 800-504-5989 for a custom quote. These return air wall grilles are cut from 1/4" thick Birch hardwood ply and have a veneer of either Oak, Maple, or Cherry. We also offer an Adjustable Damper in 21 sizes. This damper works in conjunction with the grille and allows you to control the airflow with the turn of a screwdriver.

These return air wall grilles are measured by the size of the duct opening in your wall or ceiling (Width" x Height"). For example, if the hole in your wall measures 14" wide and 6" tall you would want to order the 14 x 6 grille. The faceplate of these grilles will be 1 3/4" larger than the duct size (15 3/4" x 7 3/4" in our example).

Do not use these wall return air grilles in the floor.

Choose From 3 Different Veneers:
(Click for larger image)
Choose Your Veneer

How to Paint Your Return Air Wall Grille

- The manufacturer recommends the maple veneer if you plan on painting or staining the grille. - Be sure to choose a good oil, water, lacquer, or shellac based primer.
- Thin your primer.
- Apply 2 thin coats of primer to the grille taking care not to let drips build up in the edges.
- Allow to dry.
- Using a roller, brush, or spray apply 2 finish coats of paint.
- Allow to dry completely before installing in your home.

How to Stain Your Return Air Wall Grille

- Fill a large pan with stain and submerge the grille.
- Wipe off any excess stain and allow to dry in an upright position.
- Lay the grille flat and spray with a lacquer sanding sealer, applying 2 - 3 coats.
- Apply 1 coat of the lacquer sanding sealer to the back of the grille to ensure it is completely sealed.
- Sand the grille with a piece of 220 grit sandpaper.
- Lay the grille flat and apply 2 - 3 coats of clear lacquer.
- Allow to cure for at least 3 days before installing.

These beautiful wood vents are made to order, they should ship in 3-5 weeks. Pattern Cut Grilles are special order, non-returnable and cannot be canceled once payment is received.
